أنبوب مطحنة آلة
>
Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter

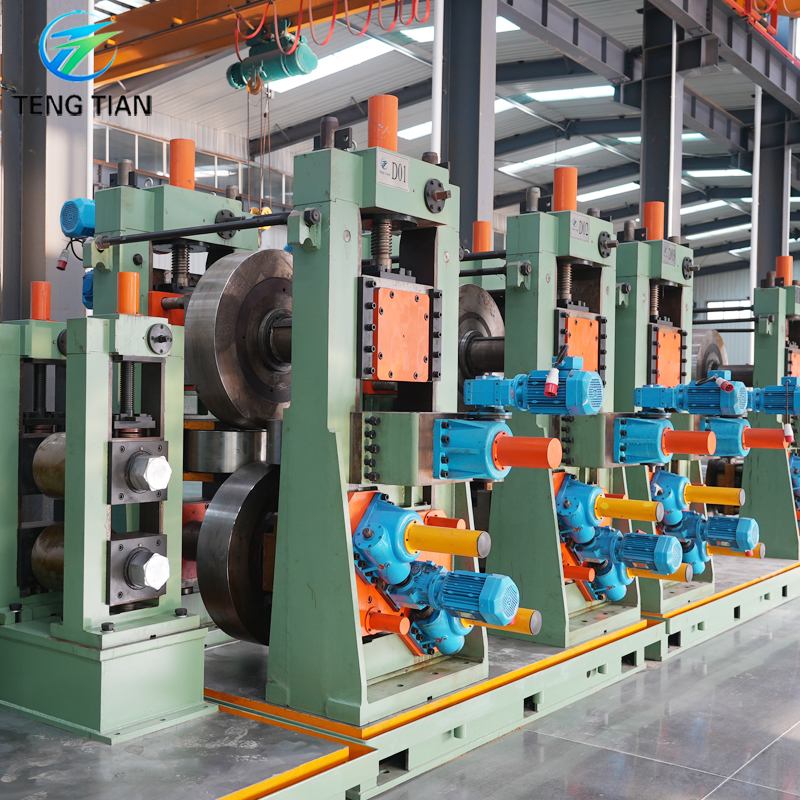

Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter

تفاصيل المنتج:
مكان المنشأ: هيبي ، الصين
اسم العلامة التجارية: Tengtian
إصدار الشهادات: CE, ISO9001, BV
رقم الموديل: HG60
معلومات تفاصيل
مكان المنشأ:
هيبي ، الصين
اسم العلامة التجارية:
Tengtian
إصدار الشهادات:
CE, ISO9001, BV
رقم الموديل:
HG60
اسم المنتج:
آلة مصنع أنبوب قطرها أوتوماتيكي من الصلب الكربوني 21-63MM
مادة:
الصلب الكربوني ، الفولاذ المقاوم للصدأ ، سبيكة منخفضة الصلب
قطر الأنابيب:
21 - 63mm
سرعة المنتج:
كحد أقصى 50 م/دقيقة
max.theckness للأنبوب المربع:
0.8-3.0mm
certification:
CE ISO
دودة تروس:
أقصى 80 م/دقيقة
الكلمة الرئيسية:
الصلب الكربوني 21-63 مم آلة قطر الأنبوب
إبراز:

High Light

إبراز:

automatic carbon steel tube mill,tube mill machine 21-63mm diameter,carbon steel tube mill machine

,

tube mill machine 21-63mm diameter

,

carbon steel tube mill machine

معلومات التداول
الحد الأدنى لكمية:
1 مجموعة
الأسعار:
$100000 to $1 million
تفاصيل التغليف:
تصدير مقاومة للماء وتجهيز البحر.
وقت التسليم:
3.5 أشهر
شروط الدفع:
L/C ، T/T ، Western Union
القدرة على العرض:
70 مجموعة في السنة
وصف المنتج
Automatic Carbon Steel 21-63mm Diameter Tube Mill Machine
Product Attributes
Material Carbon steel, Stainless steel, Low alloy steel
Pipe Diameter 21 - 63mm
Product Speed Max 50m/min
Max.Thickness for Square Pipe 0.8-3.0mm
Certification CE ISO
Worm Gearing Max.80m/min
Product Description
Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter 0
High-frequency pipe welded machinery is the special equipment to produce welded pipe of low carbon steel or low alloy steel material. The process involves feeding steel belt into the machinery, turning it into tube by forming roller, then using high-frequency proximity effect and skin effect to reach welding temperature. The welding is completed under squeezing roller extrusion, then through cooling, sizing and straightening to get the required steel pipe.
Technical Process
  • Uncoiler
  • Straightening end
  • Pipe straightener
  • Shear & Welder
  • Storage
  • Forming, H.F. welding
  • Sizing mill
  • Flying saw
  • Pipe straightener used for original pipe
  • Flatter
  • Hydraulic or scateless test equipment
  • Roller conveyor and conveyor table
  • Packing device
  • Electric control system
Specifications
Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter 1
Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m²)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
Product Gallery
Frequently Asked Questions
Q1: Are you manufacturer or trading company?
A1: We are manufacturer with more than 20 years experience.
Q2: What is the max size of pipe you have ever produced?
A2: Maximum φ630mm
Q3: Can I visit your customer machine line?
A3: Yes, but we need to get agreement from our customer first.
Q4: What is your machine advantages?
A4: Full automatic, Direct forming square, Share rollers, Fast change system
Q5: How I can get the quotation?
A5: Please send your requirements of pipe size and thickness to us.
